Spare Part

SIEMENS S7‐300

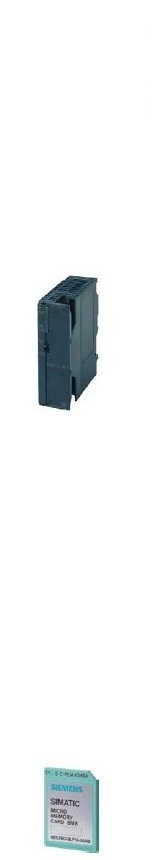

image image image
PART NUMBER DESCRIPTION
ADVANCED CONTROLLERS
6ES7314‐1AG14‐0AB0 SIMATIC S7‐300, CPU 314 CPU WITH MPI INTERFACE, INTEGRATED 24V DC POWER
6ES7315‐2AH14‐0AB0 CPU 315‐2DP CPU WITH MPI INTERFACE INTEGRATED 24 V DC POWER SUPPLY 256 KB
6ES7315‐2EH14‐0AB0 CPU 315‐2 PN/DP, 384 KB MEMORY, 1. INTERFACE MPI/DP 12MBIT/S, 2. INTERFACE
6ES7317‐2EK14‐0AB0 CPU 317‐2 PN/DP, WITH 1 MB MEMORY, 1. INTERFACE MPI/DP 12MBIT/S, 2. INTERFACE
DIGITAL I/O
6ES7321‐1BH02‐0AA0 SM 321, OPT ISOLATED, 16DI, 24 V DC, 1 X 20 PIN
6ES7321‐1BL00‐0AA0 SM 321, OPT ISOLATED 32DI, 24 V DC, 1 X 40 PIN
6ES7321‐1FH00‐0AA0 SM 321, OPT ISOLATED 16 DI, 120/230V AC, 1 X 20 PIN
6ES7322‐1HF01‐0AA0 SM 322, OPT ISOLATED, 8 DO (RELAY), 1 X 20 PIN24V DC, 2A OR 230V AC, 2A
6ES7322‐1HH01‐0AA0 SM 322, OPT 16DO, RELAY CONTACT'S, 1 X 20 PIN
6ES7322‐1BL00‐0AA0 SM 322, OPTICALLY ISOLATED, 32DO, 24V DC, 0.5A, 1 X 40 PIN
ANALOG I/O
6ES7331‐7KF02‐0AB0 SM 331, OPTICALLY ISOLATED, 8AI, RESOLUTION 9/12/14 BITS, U/I/THERMOCOUPLE/RESISTANCE ALERT
6ES7331‐7PF01‐0AB0 SM 331, OPT. ISOL.,2/3/4 WIRE, 8AI, RESISTANCE, PT100/200/100
6ES7332‐5HD01‐0AB0 SM 332, OPT ISOLATED, 4 AO, U/I; DIAGNOSTICS; RESOLUTION 11/12 BITS, 20 PIN
6ES7332‐5HF00‐0AB0 SM 332, OPT ISOLATED, 8 AO, U/I; DIAGNOSTICS; RESOLUTION 11/12 BITS, 40 PIN
MEMORY CARD
6ES7953‐8LJ31‐0AA0 S7‐300/C7/ET 200, 3.3 V NFLASH, 512 KBYTES
6ES7953‐8LL31‐0AA0 S7‐300/C7/ET 200, 3.3 V NFLASH, 2 MBYTES
COMMUNICATION
6GK7342‐5DA03‐0XE0 CP342‐5 FOR CONNECTING SIMATIC S7‐300 TO PROFIBUS, DP, S5‐COMPATIBLE‐, PG/
6GK7343‐1CX10‐0XE0 SIMATIC NET, CP 343‐1 LEAN COMMUNICATION PROCESSOR FOR CONNECTING SIMATIC S7‐300 TO IND. ETHERNET VIA TCP/IP AND UDP, MULTICAST, SEND/RECEIVE W.
ET200M
6ES7153‐1AA03‐0XB0 SIMATIC DP, INTERFACE IM 153‐1, FOR ET 200M, FOR MAX. 8 S7‐300 MODULES
6ES7153‐2BA10‐0XB0 SIMATIC DP, ET 200M INTERFACE IM 153‐2 HIGH FEATURE FOR MAX. 12 S7‐300 MODULES, WITH REDUNDANCY
6ES7153‐4AA01‐0XB0 SIMATIC DP, ET 200M INTERFACE IM 153‐4 PN IO FOR MAX. 12 S7‐300 MODULES
POWER SUPPLIES
6ES7307‐1EA01‐0AA0 PS307 INPUT: 120/230 V AC OUTPUT: 24 V DC/5 A
6ES7307‐1KA02‐0AA0 PS307 INPUT: 120/230 V AC OUTPUT: 24 V DC/10 A
CONNECTORS AND RAIL
6ES7390‐1AE80‐0AA0 SIMATIC S7‐300, RAIL L=480MM
6ES7392‐1AJ00‐0AA0 SIMATIC S7‐300, FRONT CONNECTOR, 20‐PIN WITH SCREW CONTACTS
6ES7392‐1AM00‐0AA0 SIMATIC S7‐300, FRONT CONNECTOR, 40‐PIN WITH SCREW CONTACTS
