| LOW LEVEL PERFORMANCE RANGE PLC |
| 6ES7212‐1BE40‐0XB0 |
CPU 1212C, COMPACT CPU, AC/DC/RLY, ONBOARD I/O: 8 DI 24V DC; 6 DO RELAY 2A;
2 AI 0 ‐ 10V DC, POWER SUPPLY: AC 85 ‐ 264 V AC AT 47 ‐ 63 HZ,
PROGRAM/DATA MEMORY: 75 KB |
| 6ES7214‐1BG40‐0XB0 |
CPU 1214C, COMPACT CPU, AC/DC/RLY, ONBOARD I/O: 14 DI 24V DC; 10 DO RELAY 2A;
2 AI 0 ‐ 10V DC, POWER SUPPLY: AC 85 ‐ 264 V AC AT 47 ‐ 63 HZ,
PROGRAM/DATA MEMORY: 100 KB |
| 6ES7215‐1BG40‐0XB0 |
CPU 1215C, COMPACT CPU, AC/DC/RELAY, 2 PROFINET PORT, ONBOARD I/O: 14 DI 24V DC; 10 DO
RELAY 2A, 2 AI 0‐10V DC, 2 AO 0‐20MA DC, POWER SUPPLY: AC 85 ‐ 264 V AC AT 47 ‐ 63 HZ,
PROGRAM/DATA MEMORY: 125 KB |
| 6ES7217‐1AG40‐0XB0 |
CPU 1217C, COMPACT CPU, DC/DC/DC, 2 PROFINET PORT ONBOARD I/O: 10 DI 24V DC; 4 DI
RS422/485; 6 DO 24V DC; 0,5A; 4 DO RS422/485; 2 AI 0‐ 10V DC, 2 AQ 0‐ 20MA;
POWER SUPPLY: DC 20.4 ‐ 28.8 V DC, PROGRAM/DATA MEMORY: 150 KB |

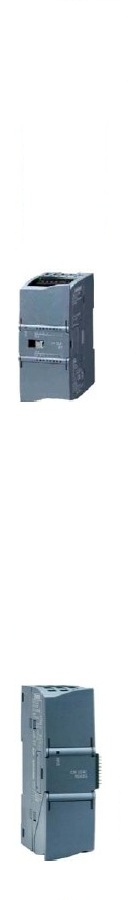

| DIGITAL I/O |
| 6ES7221‐1BF32‐0XB0 |
SM 1221, 8DI, 24V DC, SINK/SOURCE INPUT |
| 6ES7221‐1BH32‐0XB0 |
SM 1221, 16 DI, 24VDC, SINK/SOURCE INPUT |
| 6ES7222‐1HF32‐0XB0 |
SM 1222, 8 DO, RELAY 2A |
| 6ES7222‐1HH32‐0XB0 |
SM 1222, 16 DO, RELAY 2A |
| 6ES7223‐1PL32‐0XB0 |
SM 1223, 16DI/ 16DO, 16DI DC 24V, SINK/SOURCE, 16DO, RELAY 2A |
ANALOG I/O |
| 6ES7231‐4HD32‐0XB0 |
SM 1231, 4AI, +/‐10V, +/‐5V, +/‐2.5V, OR 0‐20mA 12 BIT+ SIGN BIT (13BIT ADC) |
| 6ES7231‐5ND32‐0XB0 |
SM 1231, 8 AI, +/‐10V, +/‐5V, +/‐2.5V, OR 0‐20 MA 12 BIT + SIGN OR (13 BIT ADC) |
| 6ES7232‐4HB32‐0XB0 |
SM 1232, 2 AO, +/‐10V, 14 BIT RESOLUTION, OR 0‐20 MA, 13 BIT RESOLUTION |
| 6ES7232‐4HD32‐0XB0 |
SM 1232, 4 AO, +/‐10V, 14 BIT RESOLUTION, OR 0‐20 MA, 13 BIT RESOLUTION |
| COMMUNICATION |
| 6ES7241‐1CH32‐0XB0 |
CM 1241, RS485, 9 PIN SUB D (MALE), SUPPORTS MESSAGE BASED FREEPORT |
| 3RK7243‐2AA30‐0XB0 |
SIMATIC S7‐1200, CM 1243‐2, COMMUNICATION MODULE AS‐INTERFACE
MASTER ACCOR. AS‐INTERFACE SPEC. V3.0 |
| 6GK7243‐5DX30‐0XE0 |
CM 1243‐5 FOR CONNECTION OF SIMATIC S7‐1200 TO PROFIBUS AS DP MASTER MODULE |
| ENERGY METER MODULE |
| 6ES7238‐5XA32‐0XB0 |
ANALOG INPUT, SM 1238 ENERGY METER 480V AC, ENERGY MEASUREMENT MODULE FOR
RECORDING ELECTRICAL PARAMETERS IN 1 AND 3 PHASE NETWORKS (TN, TT) UP TO 480VAC;
CURRENT RANGE: 1A, 5A; RECORDING OF VOLTAGES, CURRENTS, PHASE ANGELS, POWER,
ENERGY VALUES, FREQUENCIES; CHANNEL DIAGNOSIS |
